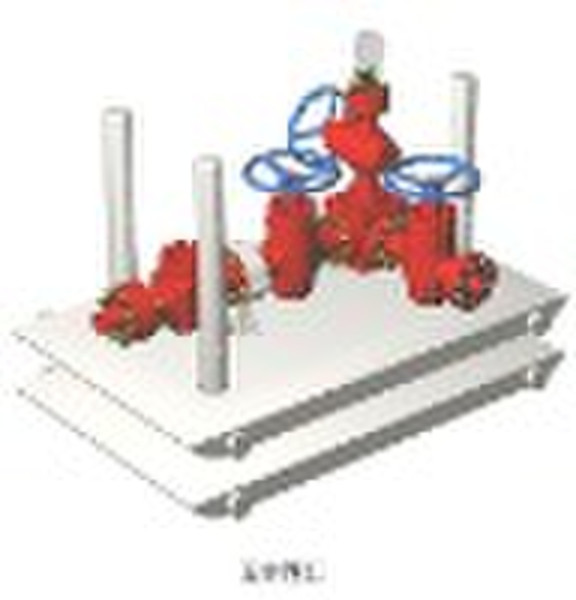

kill manifold

1, Application In case of increase of the well head pressure, thekill manifold can provide a means of pumping heavydrilling fluid into the well to balance bottom hole pres-sure so that well kick and blowout can be prevented. Inthis case, by using blowdown lines connected to the killmanifold, the increasing well head pressure also canbe released directly for bottom hole pressure release,or water and extinguishing agent can be injected intothe well by means of the kill manifold. The check valveson the kill manifold only allow injection of kill fluid orother fluids into the well bore through themselves, butdo not allow any backflow so as to perform the kill op-eration or other operations. 2, Structure The kill manifold consists of check valves, gatevales, pressure gauges and pipelines. The one end ofthe kill manifold is connected to the drilling spool andthe other end is connected to the pump. The kill mani-fold and choke manifold are both designed to API 16Cand can be used together. The kill manifold is available for pressure ratings of 14MPa, 21MPa, 35MPa and70MPa 3, Operating Requirements: (1) Working pressure of all pipelines, gate valvesand check valves shall be compatible with that of theBOP stack used. (2) The kill manifold is not intended to be used ascommon lines for pouring drilling fluid. No.ItemQuantityMaterialRemarks1Lifting Base12105/78Flange230CrMo3105/78Flat Valve2Please refer to Gate Valves for details4105/78Ball-and-Seat2Please refer to Gate Valves for details5103/105Blind Flange230CrMo6103/105Flat Valve2Please refer to Gate Valves for details752/105Flat Valve1Please refer to Gate Valves for details8Pressure Gage19Break Valve110Meter’s Flange130CrMo11Five-Joint130CrMo
